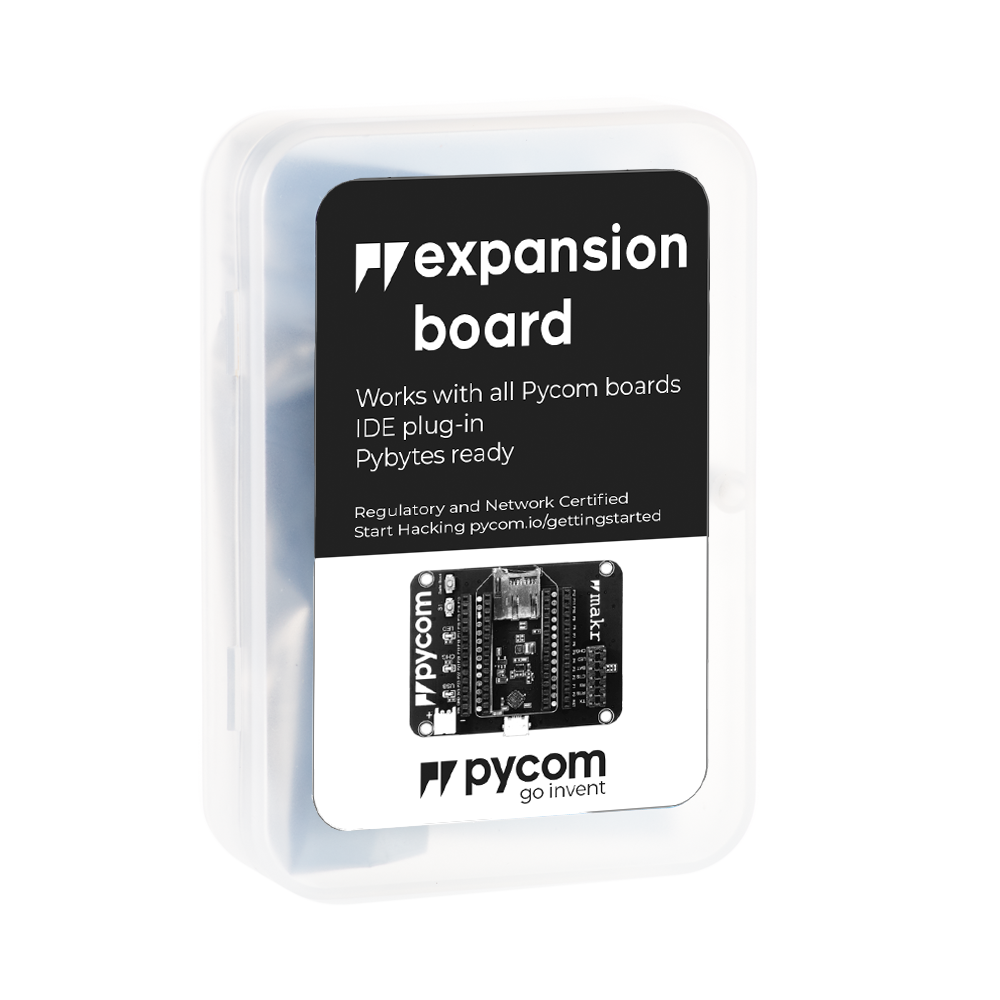

Expansion Board 3.0

$34.99
Model Number: Expansion-Board-30
Introducing the Expansion Board 3.0, compatible with the WiPy 3.0, LoPy4, SiPy, FiPy and GPy.
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
34.990
Categories: Expansion Boards + Shields
Manufacturer: PyCom
Facebook
Twitter
Email
Pinterest
LinkedIn
  • Description
  • Specifications

Description

Introducing the Expansion Board 3.0, compatible with the WiPy 3.0,  LoPy4, SiPy, FiPy and GPy.

NOTE: Does not include the LoPy4

Features

  • USB and LiPo battery powered
  • Custom PIC USB to serial converter with automatic bootloader mode
  • LiPo battery charger (BQ24040), with options for two different charging currents (100mA and 450mA)
  • TPS2115A with reverse voltage protection
  • MicroSD card slot
  • JST style battery connector
  • Power LED and charge status LED
  • One user LED and one user switch
  • Button to enter into “safe mode” easily
  • Battery voltage monitoring via the WiPy ADC
  • Lots of jumpers to enable/disable features

Size: 65 x 50 x 8mm

Weight

  • 18g
  • 43g (Packaged)

The datasheet of the Expansion Board is available as a PDF File

The pinout of the Expansion Board is available as a PDF File

Pycom expansion board 3.0 information page
